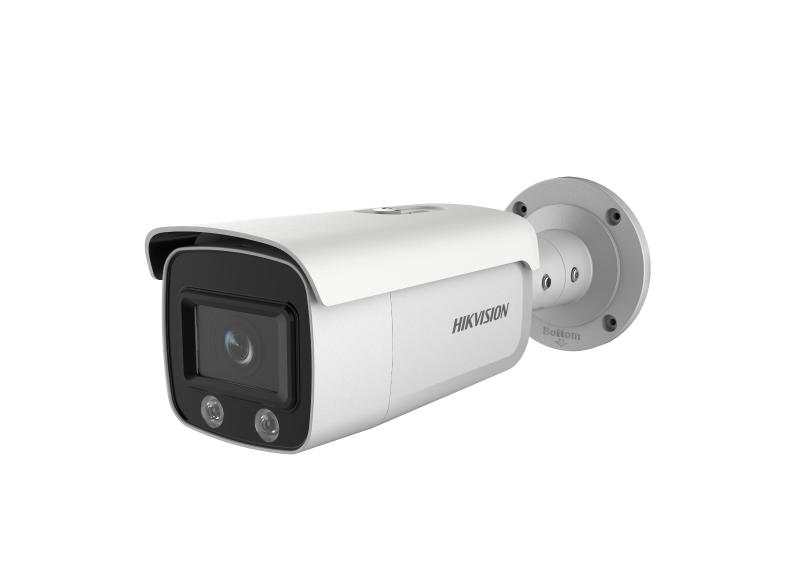

Hikvision DS-2CD2T27G1-L 2MP ColorVu Bullet Network Camera
Unlock a new level of clarity and reliability in your surveillance system with the Hikvision DS-2CD2T27G1-L 2MP ColorVu Bullet Network Camera. Engineered with cutting-edge technology, this camera empowers you to capture vivid, full-color images even in low-light environments, ensuring uncompromised security monitoring round the clock.
Key Features
- 2MP High Definition Imaging: Equipped with a high-resolution 2-megapixel sensor, the DS-2CD2T27G1-L delivers sharp and detailed images, providing clear surveillance footage for enhanced security monitoring.
- ColorVu Technology: Unlike conventional cameras that switch to black and white mode in low light, the DS-2CD2T27G1-L maintains vivid color images, enabling accurate identification and improved situational awareness day and night.
- Wide Dynamic Range (WDR): With WDR technology, this camera effectively balances light and dark areas within the same scene, ensuring clear visibility in challenging lighting conditions.
- Smart Detection Features: Enhance security monitoring with intelligent detection capabilities, including intrusion detection, line crossing detection, and motion detection.
- Weatherproof Design: Built to withstand harsh weather conditions, the DS-2CD2T27G1-L features a robust IP67-rated weatherproof housing, making it suitable for outdoor installations in various environments, ensuring reliable performance even in adverse weather conditions.
Specifications
| Specification | |
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | 0.0035 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens | |
| Focal length | 2.8/4/6 mm |
| Aperture | F1.0 |
| Focus | Fixed |
| FOV | 2.8 mm, horizontal FOV: 112°, vertical FOV: 57°, diagonal FOV: 138° 4 mm, horizontal FOV: 89°, vertical FOV: 46°, diagonal FOV: 106° 6 mm, horizontal FOV: 56°, vertical FOV: 30°, diagonal FOV: 66° |
| Lens Mount | M16 |
| Illuminator | |
| White Light Range | Warm white LEDs (3000K), up to 30m |
| Compression Standard | |
| Video Compression | Main stream: h.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, object removal detection, unattended baggage detection |
| Exception Detection | Scene change detection |
| Face Detection | Yes |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fp s(1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub-stream separately |
| Network | |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Firmware Version | V5.5.82 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200 |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.7 A, max. 9 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10.5 W |
| Protection Level | IP67 |
| Material | Front cover: metal, back cover: metal |
| Dimension | Camera: Φ 105 × 290.7 mm (Φ 4.1″ × 11.4″) With package: 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″) |
| Weight | Camera: 1200 g (2.6 lb.) With package: 1800 g (4 lb.) |
