Sale!

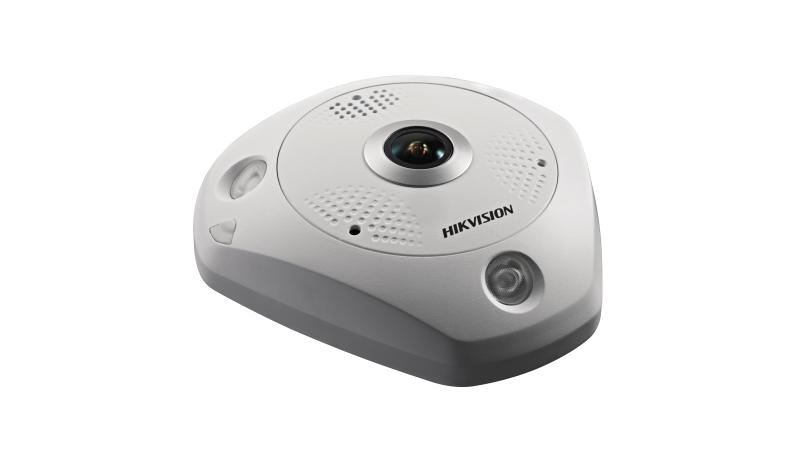

Hikvision DS-2CD63C2F-IVS 12 MP Network Fisheye Camera
Original price was: KSh 84,000.00.KSh 82,000.00Current price is: KSh 82,000.00. + VAT
- 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
- IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
- High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
- each image is clear and detailed
Hikvision DS-2CD63C2F-IVS 12 MP Network Fisheye Camera
Featuring a high-resolution 12 MP sensor, the DS-2CD63C2F-IVS captures panoramic views with incredible detail and clarity. Whether you’re monitoring large indoor areas, retail spaces, or parking lots, this camera provides comprehensive coverage, eliminating blind spots and ensuring every detail is captured accurately.
Function Description
Smart
- 2 behavior analyses, line crossing detection and intrusion detection
- 1 statistic, heat map
- Smart recording: Support edge recording and dual-VCA
- Smart encoding: Support low bit rate, low latency, ROI enhance encoding
- 4000 × 3072 @20fps
- Support live view image decoded by hardware and software
- Support up to 14 display modes in total
- Streaming smoothness setting for different requirements of image quality and fluency
- Support 264+/H.264/MJPEG video compression, multi-level video quality configuration; support Baseline Profile/Main Profile/High Profile H.264 encoding complexity
- Multiple OSD color: Black & white self-adaptive; Custom
- Digital WDR is supportable for backlight environment
- Support BLC
System
- Support ONVIF (profile S/profile G), ISAPI protocol
- Support dual streams, and support 20 channels live view at the same time
- Lightening protection, surge protection, voltage transient protection, anti-static protection
Interface
- Support standard 128G microSD/SDHC/SDXC card storage
- Support 10M/100M Ethernet port. Support RS-485 (with – S model)
- Support Audio I/O, support stereo audio (with – S model)
- Support Alarm I/O (with – S model)
Security
- Support three-level user authentication management, user and password authorization, and IP address filtering
- Support security certificate as HTTPS
- Lock user IP after certain times failed login attempts
Specifications
| Camera | |
| Image Sensor | 1/1.7” Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s – 1/100,000 s |
| Slow Shutter | Support |
| Lens | 2 mm @F2.4, horizontal field of view: 180° (wall mount), 360°(ceiling mount), 360°(table mount) |
| Lens Mount | M12 |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | Digital WDR |
| Compression Standard | |
| Video Compression | Main stream: H.264 Sub stream: H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Support only when the display mode is Fisheye View |
| Video Bit Rate | 256 Kbps – 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Image | |
| Max. Resolution | 4000 × 3072 |
| Fisheye View Main Stream Max. Frame Rate | 50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560) 60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560) |
| Fisheye View Sub Stream Max. Frame Rate | 50Hz: 12.5fps (720 × 720, 704 × 576) 60Hz: 15fps (720 × 720, 704 × 480) |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Region of Interest | Support 3 fixed region for each stream |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Live View Display | |
| Mount Type | Support table, wall, and ceiling |
| Decoding Mode | Support hardware decoding and software decoding |
|
Display Mode | Support 14 display modes in total (including display modes of different mount types and decoding modes): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
| Audio (With –S model) | |
| Environment Noise Filtering | Support |
| Audio I/O | Support |
| Audio Sampling Rate | Max. 48 kHz |
| Smart Feature-set | |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 4 pre-defined virtual regions supported |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 4 pre-defined virtual lines supported |
| Heat Map | A graphical representation of density of visit in a configured area. |
| Network | |
| Network Storage | Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, password protection, privacy mask, watermark, IP address filter |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M Ethernet port With –S model: 1 RS-485 interface |
| Audio Input | 1 3.5mm audio interface, Mic in/Line in (with – S model); 1 built-in microphone by default, -42dB |
| Audio Output | 1 3.5mm audio output interface (with – S model); 1 built-in speaker by default, support echo cancellation |
| Alarm (With –S model) | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| General | |
| Operating Conditions | Indoor temperature: -10 °C to +50 °C (14 °F to +122 °F) With –V model: Outdoor temperature: -30 °C to +60 °C (-22 °F to +140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | DC 12 V ± 10%, 0.94 A PoE (802.3at, class 4), 0.41 – 0.26 A |
| Power Consumption | Max. 14.7 W |
| IR Range | 15 m |
| Protection Level | With – V model: IEC60068-2-75Eh, 20J; EN50102, up to IK10 for camera housing With – V model: IP66 |
| Dimensions | 164 × 152.8 × 43.8 mm (6.46” × 6.02” × 1.72”) With –V model: 164 × 152.8 × 49.5 mm (6.46” × 6.02” × 1.95”) |
| Weight | 1400 g (3.09 lbs) |
