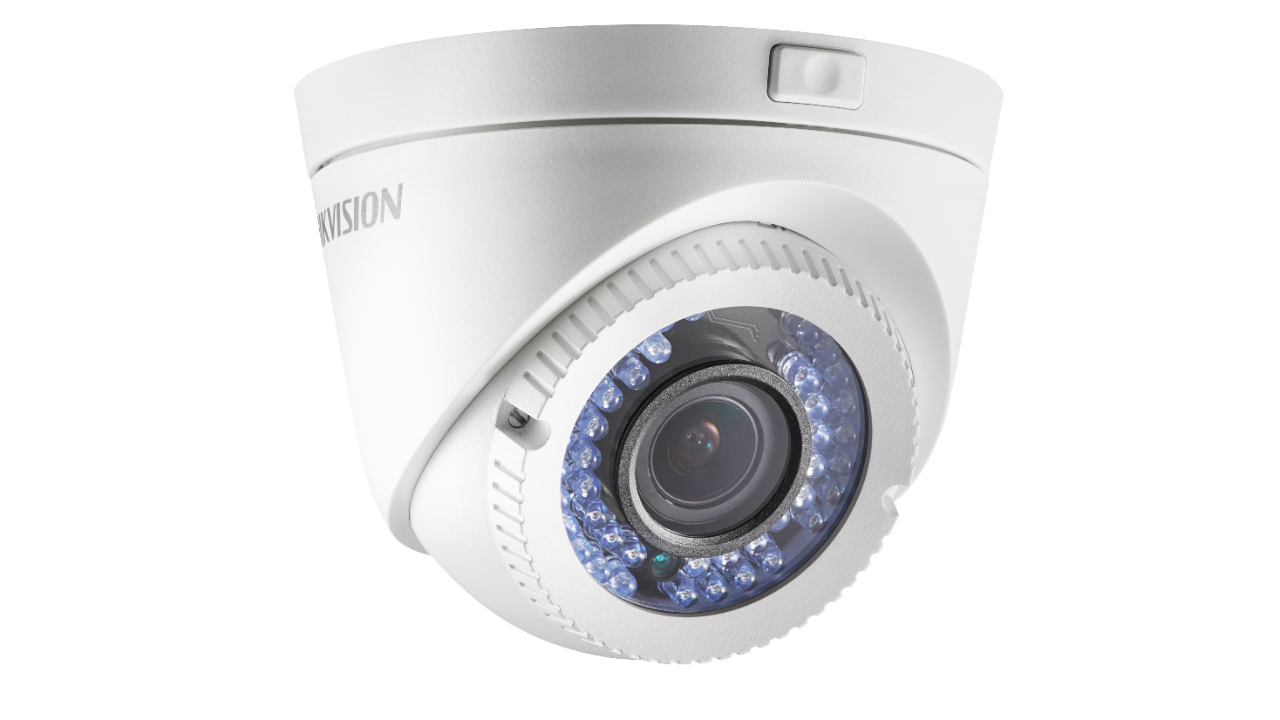

Hikvision DS-2CE56D0T-VFIR3E 2MP Varifocal Turret Camera (2.8-12mm)
Upgrade your surveillance system with the Hikvision DS-2CE56D0T-VFIR3E Varifocal Turret Camera, a versatile and high-performance solution designed to deliver clear and detailed monitoring in various indoor and outdoor environments. With advanced features and a flexible varifocal lens, this camera offers precise coverage and reliable security for a wide range of applications.
Key Features
- 2MP High-Resolution Imaging: Capture sharp and detailed images with 2MP resolution, ensuring superior image quality for effective surveillance and monitoring.
- Varifocal Lens: Customize your field of view to suit specific surveillance needs. The varifocal lens allows for adjustable focal lengths, providing flexibility in coverage and enabling precise monitoring of areas of interest.
- Infrared Night Vision: Ensure clear imaging even in low-light conditions. Equipped with infrared LEDs, the camera delivers high-quality night vision capabilities, allowing for reliable surveillance round the clock.
- Wide Dynamic Range (WDR): Maintain clear and balanced images in challenging lighting conditions. The camera’s WDR technology enables it to capture details in both bright and dark areas simultaneously, minimizing overexposure and underexposure for optimal image quality.
- IP67 Weatherproof Rating: Built to withstand harsh outdoor environments. The camera’s IP67-rated weatherproof housing protects it from dust, rain, and extreme temperatures, ensuring reliable operation outdoors.
- Smart IR Technology: Enhance visibility in low-light environments. The camera’s Smart IR technology automatically adjusts the intensity of the infrared LEDs based on the distance to the subject, ensuring clear and detailed images even in complete darkness.
Specification
| Specification | |
| Camera | |
| Image Sensor | 2 MP progressive scan CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.4, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens | |
| Lens Type | Varifocal lens, manual adjustment, 2.8 mm to 12 mm |
| Focal Length & FOV | Horizontal FOV 105.2° to 32.8° |
| Lens Mount | Φ14 |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 40 m |
| Image | |
| Image Settings | Brightness,Mirror,Sharpness,AGC |
| Frame Rate | PAL: 1080p@25fps NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Image Enhancement | DWDR,BLC |
| Noise Reduction | 2D DNR |
| Interface | |
| Video Output | 1 HD analog output |
| General | |
| Power | 12 VDC ±15%/PoC.at, max. 6.5 W |
| Material | Main body: Metal, Enclosure: Plastic |
| Dimension | Ø 130.5 mm × 102.4 mm (Ø 5.14″ × 4.03″) |
| Weight | Approx. 710 g (1.57 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) |
| Language | English |
| Approval | |
| Protection | IP67 |
