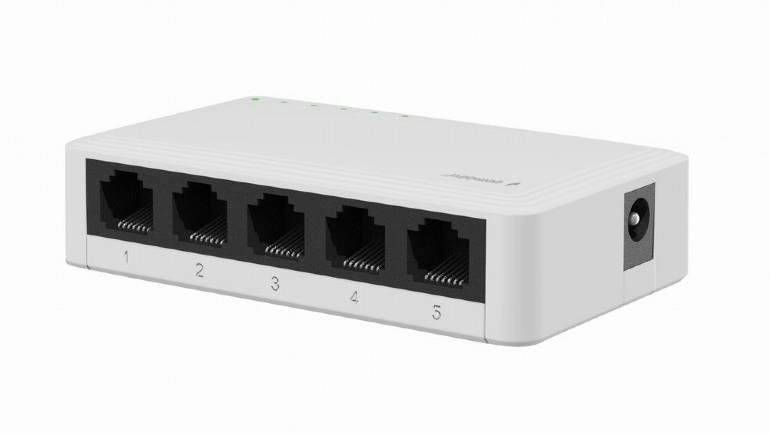

Hikvision DS-3E0105D-E 5Port Unmanaged Desktop Switch
Key Features
- Port Configuration: This switch comes with 5 Ethernet ports, allowing you to connect multiple devices such as computers, printers, IP cameras, or other networking equipment.
- Unmanaged: As an unmanaged switch, it operates without the need for configuration. Simply plug in your devices, and they should be able to communicate with each other seamlessly.
- Desktop Form Factor: The “desktop” designation means that it’s designed to be placed on a desk or similar surface, rather than rack-mounted. This makes it suitable for small office/home office (SOHO) environments or any situation where space is limited.
- Plug-and-Play: Unmanaged switches like the DS-3E0105D-E are typically plug-and-play devices, meaning they require minimal setup. Once connected to a power source and devices, they should automatically detect and configure connections.
Specifications
| DS-3E0105D-E Specification | |
| Network Parameters | |
| Port Number | 5 |
| Port Type | 10/100 Mbps RJ45 ports |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store and forward |
| MAC Address Table | 1 K |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| General | |
| Shell | ABS |
| Net Weight | 0.025 kg |
| Dimension (L × H × D) | 82 × 52 × 22.4 mm |
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -40°C~70°C |
| Operating Humidity | 10%~90% RH non-condensing |
| Storage Humidity | 5%~90% RH non-condensing |
| Power Supply | 5 V DC, 0.6 A |
