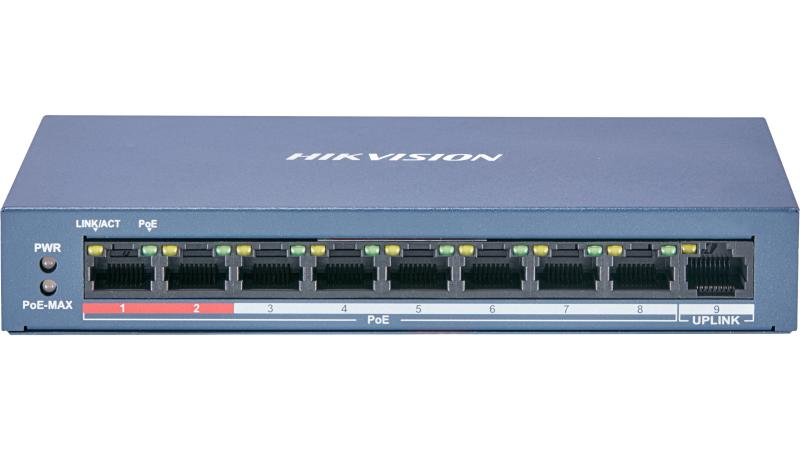

Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch
Original price was: KSh 12,000.00.KSh 11,000.00Current price is: KSh 11,000.00. + VAT
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Hikvision DS-3E0109P-E/M(B) 8 Port Unmanaged PoE Switch
Features
- PoE Capability: With Power over Ethernet capability, the switch can deliver both power and data over a single Ethernet cable, simplifying installation and reducing the need for additional power outlets or wiring.
- Unmanaged: Hikvision DS-3E0109P-E/M(B) is unmanaged, meaning it operates as a plug-and-play device without the need for configuration. This makes it suitable for simple network setups where advanced features are not required.
- Compact Design: The DS-3E0109P-E/M(B) features a compact and sturdy design, making it suitable for desktop or wall mounting, providing flexibility in installation.
- IEEE Standards: Hikvision DS-3E0109P-E/M(B) adheres to IEEE standards for networking and PoE, ensuring compatibility with a wide range of devices and network equipment.
- Data Transfer: Along with power delivery, the switch also provides high-speed data transfer rates over Ethernet, enabling smooth and reliable communication within the network.
Specifications
| Model | DS-3E0109P-E/M(B) | |
| Shell | Metal material | |
| Net Weight | 0.35 kg (0.77 lb) | |
| Gross Weight | 0.89 kg (1.96 lb) | |
|
General | Dimensions (W × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 V DC, 1.35 A | |
| Max. Power Consumption | 65 W | |
| Power Consumption in Idle | 5 W | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Surge Protection | 6 kV | |
|
Network Parameters | Ports | 8 x 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K | |
| Switching Capacity | 1.8 Gbps | |
| Packet Forwarding Rate | 1.34 Mpps | |
| Internal Cache | 1 Mbits | |
|
PoE Power Supply | PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) | |
| PoE Port | PoE: Ports 1 to 8 | |
| Max. Port Power | 30 W | |
| PoE Power Budget | 60 W | |
| Dialing Function | Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
|
Approval |
EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) | |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) | |
