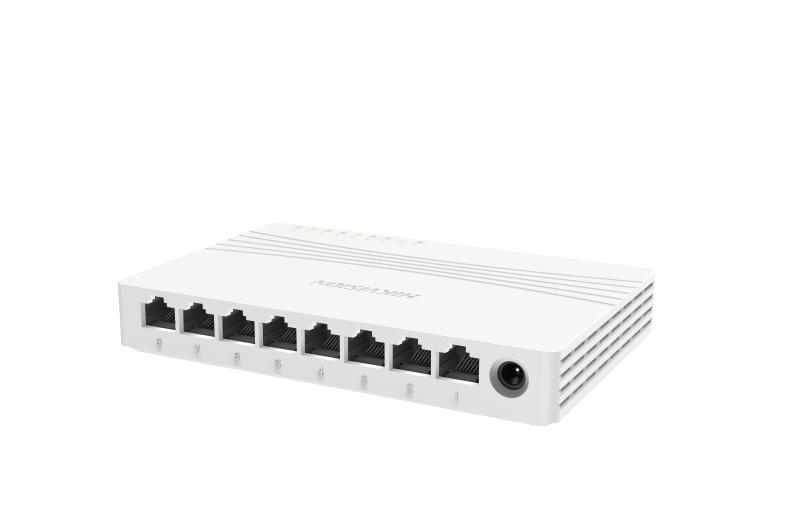

Hikvision DS-3E0508D-E 8Port Gigabit Unmanaged Switch
Key features
- Gigabit Ethernet Ports: The DS-3E0508D-E features eight Gigabit Ethernet ports, enabling high-speed data transfer rates of up to 1000 Mbps. These ports support auto-negotiation and auto-MDI/MDIX, allowing for hassle-free connectivity with a wide range of devices, including computers, printers, IP cameras, and more.
- Unmanaged Operation: This switch operates as an unmanaged device, requiring no configuration or management. With its plug-and-play functionality, users can simply connect their devices to the switch ports, and the switch will automatically optimize network performance without the need for manual intervention.
- Compact Desktop Design: Designed for desktop deployment, the DS-3E0508D-E features a compact and lightweight form factor, making it suitable for placement on desks, shelves, or other convenient locations. Its space-saving design ensures easy integration into home or office environments without occupying valuable desk space.
- Plug-and-Play Installation: Setting up the DS-3E0508D-E is a breeze thanks to its plug-and-play installation process. Users can connect Ethernet cables from their devices to the switch ports, and the switch will automatically detect and configure the connections, eliminating the need for complex setup procedures.
- Silent Operation: Equipped with a fanless design, this switch operates silently, making it suitable for deployment in noise-sensitive environments such as home offices or small business settings. Its silent operation ensures a comfortable working environment without distracting background noise.
Specifications
| Model | DS-3E0508D-E | |
|
Network parameters | Port number | 8 |
| Port type | 10/100/1000 Mbps RJ45 ports | |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab | |
| Forwarding mode | Store and forward | |
| MAC address table | 4 K | |
| Switching capacity | 16 Gbps | |
| Packet forwarding rate | 11.904 Mpps | |
|
General | Shell | ABS |
| Weight | 0.065 kg | |
| Dimensions (L × H × D) | 142 × 90 × 23 mm | |
| Operating temperature | 0°C~40°C | |
| Storage temperature | -40°C~70°C | |
| Operating humidity | 10%~90% RH non-condensing | |
| Storage humidity | 5%~90% RH non-condensing | |
| Power supply | 9 V DC, 0.6 A | |
