Sale!

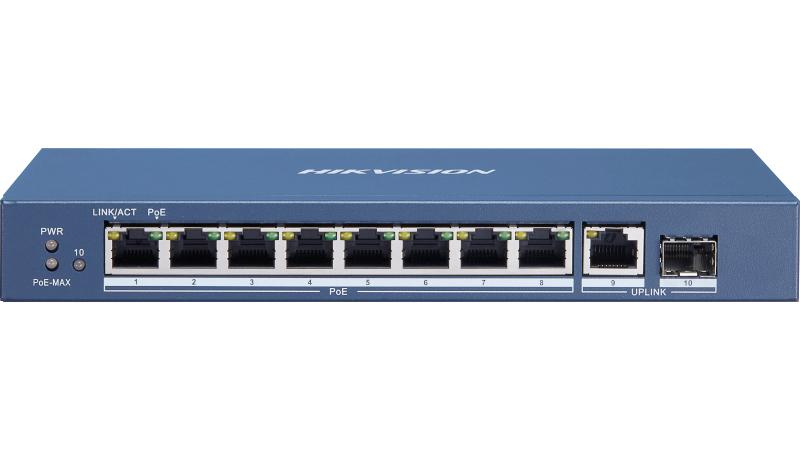

Hikvision DS-3E0510P-E/M 8Port Gigabit Unmanaged PoE Switch
Original price was: KSh 13,000.00.KSh 12,000.00Current price is: KSh 12,000.00. + VAT
- 8 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Reliable fan-free design
Hikvision DS-3E0510P-E/M 8Port Gigabit Unmanaged PoE Switch
Key features
- Port Configuration: Hikvision DS-3E0510P-E/M offers 8 Ethernet ports, all of which support Gigabit speeds (10/100/1000 Mbps). Gigabit Ethernet ensures high-speed data transfer rates, making it suitable for bandwidth-intensive applications.
- PoE Support: All 8 ports of Hikvision DS-3E0510P-E/M support Power over Ethernet (PoE). PoE allows power and data to be transmitted over a single Ethernet cable, simplifying installation and reducing the need for additional power outlets near connected devices. PoE is commonly used for IP cameras, VoIP phones, access points, and other network devices.
- Unmanaged: Being an unmanaged switch means it operates in a plug-and-play manner without requiring any configuration. Unmanaged switches are typically easy to deploy and are ideal for simple networks or situations where advanced features and management are not needed.
- Power Budget: Hikvision DS-3E0510P-E/M will have a maximum power budget for supplying PoE to connected devices. This is the total amount of power available for all PoE devices combined and should be sufficient for the power requirements of the devices you intend to connect.
- Gigabit Uplink Ports: In addition to the 8 PoE ports, Hikvision DS-3E0510P-E/M also include additional Gigabit uplink ports for connecting to the core network or other switches. These uplink ports facilitate high-speed data transfer between switches and ensure optimal network performance.
Specifications
| Model | DS-3E0510P-E/M | |
|
General | Shell | Metal material |
| Net Weight | 0.635 kg (1.40 lb) | |
| Gross Weight | 1.366 kg (3.01 lb) | |
| Dimensions (W × H × D) | 217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | –40 °C to 85 °C (–40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 48 V DC, 1.35 A | |
| Max. Power Consumption | 65 W | |
| Power Consumption in Idle | 7 W | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Surge Protection | 6 kV | |
|
Network Parameters | Ports | 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 4 K | |
| Switching Capacity | 20 Gbps | |
| Packet Forwarding Rate | 14.88 Mpps | |
| Internal Cache | 1.5 Mbits | |
|
PoE Power Supply | PoE Standard | IEEE 802.3af;IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(+), 3/6(-) | |
| PoE Port | PoE: Ports 1 to 8 | |
| Max. Port Power | 30 W | |
| PoE Power Budget | 58 W | |
|
Approval |
EMC | FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) | |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) | |
