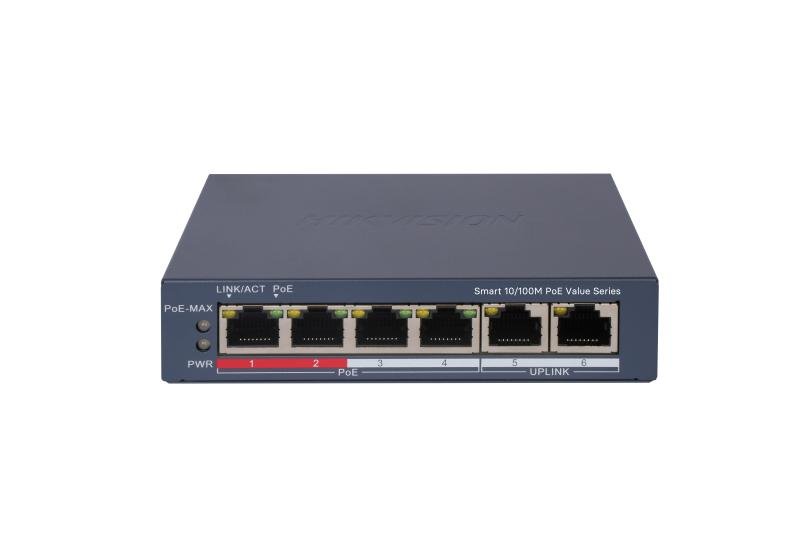

Hikvision DS-3E1106P-EI/M 4-Port Smart PoE Switch
Original price was: KSh 6,000.00.KSh 5,000.00Current price is: KSh 5,000.00. + VAT
- 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- Total PoE Power Budget 45 W
- Support 1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Hikvision DS-3E1106P-EI/M 4-Port Fast Ethernet Smart PoE Switch
The Hikvision DS-3E1106P-EI/M is a 4-port Fast Ethernet Smart PoE (Power over Ethernet) switch designed to provide efficient network connectivity and power supply for devices such as IP cameras, wireless access points, and VoIP phones. This switch is particularly suitable for small to medium-sized surveillance systems and network setups.
Specifications
| Model | DS-3E1106P-EI/M | |
| Network Parameters | Ports | 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K | |
| Switching Capacity | 14 Gbps | |
| Packet Forwarding Rate | 10.42 Mpps | |
| Internal Cache | 1 Mbits | |
PoE Power Supply | PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) | |
| PoE Port | PoE: Ports 1 to 4 | |
| Max. Port Power | 30 W | |
| PoE Power Budget | 45 W | |
|
Software Function | Long Range | Ports 1 to 4: up to 300 m.Long range performance may vary depend on camera model or cable condition. |
| VIP Port | Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidthresources are insufficient. | |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. | |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. | |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation. Support 2 aggregation groups. | |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP. Suppport 802.1w RSTP. | |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. | |
|
HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. | |
| System Maintenance | Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management | |
Software function | IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. It Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. | |
|
General | Shell | Metal material |
| Net Weight | 0.27 kg (0.6 lb) | |
| Gross Weight | 0.77 kg (1.7 lb) | |
| Dimensions (W × H × D) | 121.1 mm × 27.6 mm × 83.1 mm (4.77” × 1.09” × 3.27”) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Relative Humidity | 5% to 95% (no condensation) | |
| Power Supply | 54 V DC, 0.92 A | |
| Installation Mode | Desk-Mounted,Wall-Mounted | |
| Max. Power Consumption | 50 W | |
| Power Consumption in Idle | 1.8 W | |
| Surge Protection | 6 kV | |
|
Approval | EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3:2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN62368-1: 2014+A11: 2017) | |
| Chemistry | Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS(2011/65/EU) |
