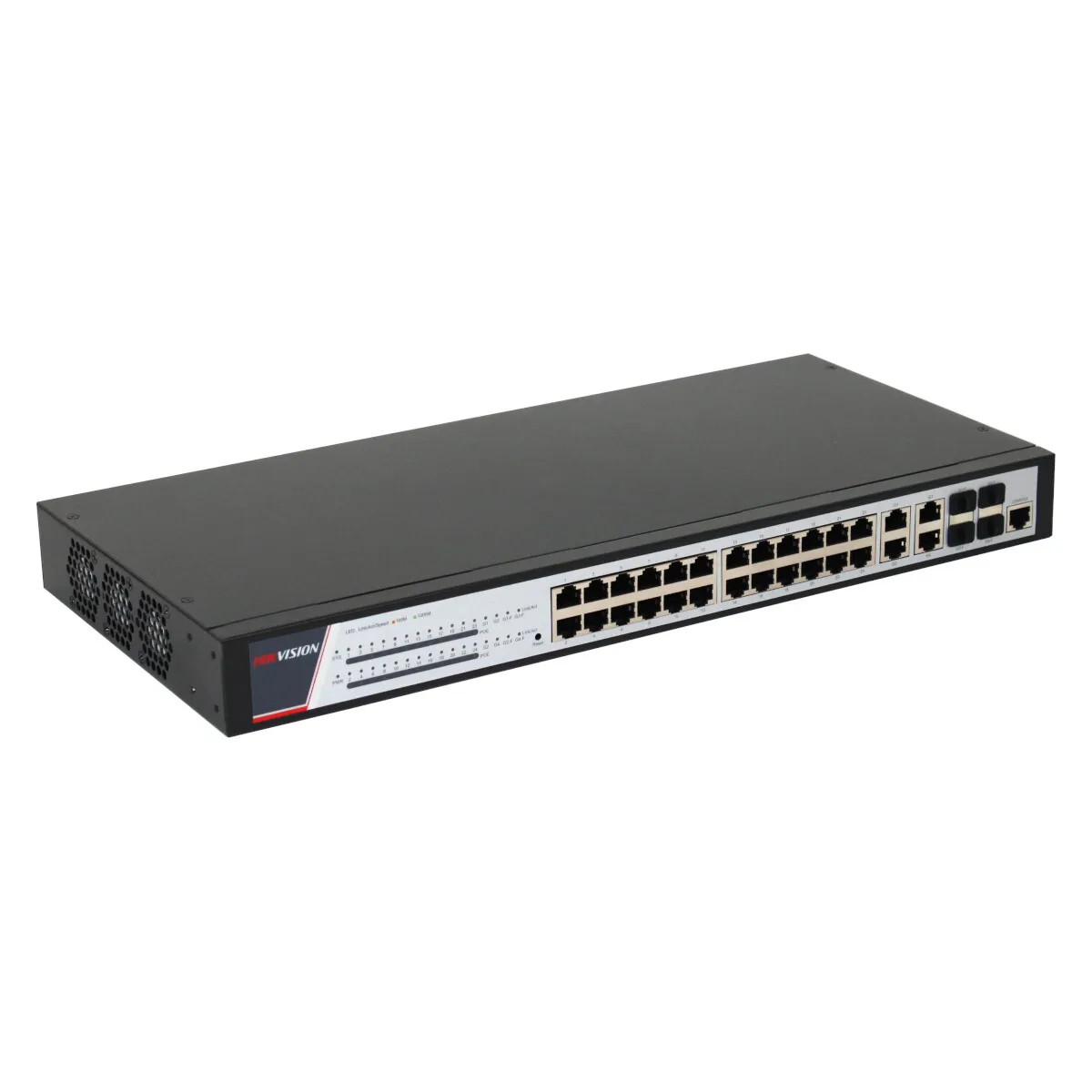

Hikvision DS-3E2528P 24 port Gigabit Full Managed PoE Switch
Original price was: KSh 127,000.00.KSh 126,000.00Current price is: KSh 126,000.00. + VAT
- 24 Gigabit Poe electrical ports and 4 Gigabit combo ports.
- Support static routing, policy routing, rip, OSPF and other three-layer routing protocols.
- IGMP snooping and GRMP for filtering multicast traffic.
- Port‐based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning.
- Support IEEE 802.1x authentication, radius and bdtacacs + authentication.
- Support EAPs and ERPs Ethernet ring network protection protocol.
- QoS (IEEE 802.1P/1Q and TOS/DiffServ) to increase determinism.
- Support IEEE 802.3af/at compliant PoE.
- Each PoE port provides up to 30W output power.
- PoE management: PoE device detection, PoE power management.
- Easy network management by web browser, Console, Telnet, SSH.
- SNMPv1/v2c/v3 for different levels of network management.
Hikvision DS-3E2528P 24 port Gigabit Full Managed PoE Switch
Features and Functions
- PoE Capability: This switch supports Power over Ethernet (PoE) technology, which enables both power and data to be transmitted over a single Ethernet cable. PoE eliminates the need for separate power cables, simplifying installation and reducing costs, particularly useful for IP surveillance cameras, VoIP phones, and other PoE-enabled devices.
- Management Features: Being a fully managed switch, it provides various management features such as VLAN (Virtual Local Area Network) support, QoS (Quality of Service) prioritization, port mirroring, SNMP (Simple Network Management Protocol) for remote monitoring and management, and other advanced networking functionalities.
- Security Features: Hikvision switches typically come with security features such as MAC address binding, port security, and IEEE 802.1X authentication to ensure network integrity and prevent unauthorized access.
- Quality and Reliability: Hikvision is known for producing reliable networking equipment, and their switches often undergo rigorous testing to ensure quality and stability.
Specifications
| Item | DS-3E2528P |
| Port number | 24 x 10/100/1000Base-T PoE ports, 4 1000Base-X SFP ports, 1 Console port |
| Switching capacity | 56Gbps |
| Packet forwarding rate | 42Mpps |
| MAC address table | 8K |
| Dimensions(L × H × D) | 440 mm × 45 mm × 232 mm |
| Consumption | <15W |
| POE standard | IEEE802.3af, IEEE802.3at |
| POE power budget | 380W |
| Power supply | AC：100V-240V，50Hz±10% |
|
Environment | Operating temperature/humidity: 0℃-45℃，5%-95% non-condensing
Storage temperature/humidity: -20℃-70℃；5%-95% non-condensing |
| MAC exchange | Static configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration |
| VLAN | 4K VLAN; GVRP; QinQ; Private VLAN |
| STP | 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection |
|
Multicast | IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation |
|
QoS | Flow classification based on L2~4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping |
|
Security | L2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding |
| Reliability | Static/LACP link aggregation EAPS and ERPS |
|
Management | Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON |
