Sale!

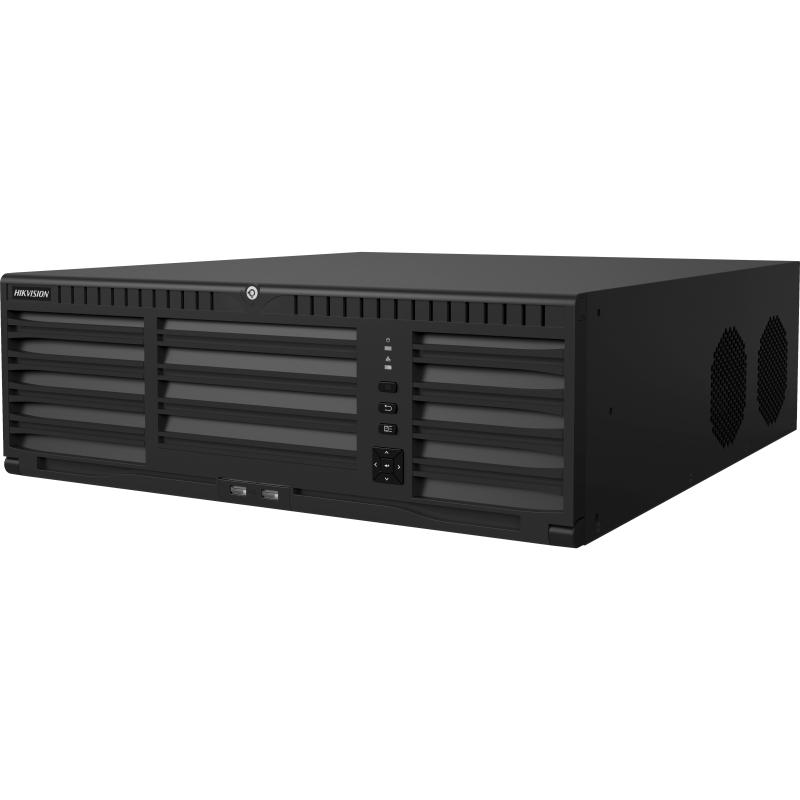

Hikvision DS-96128NI-I16 128 Channel 3U 4K Super NVR
Original price was: KSh 366,000.00.KSh 364,000.00Current price is: KSh 364,000.00. + VAT
- Up to 128 channel IP cameras can be connected
- Up to 576 Mbps high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 1 VGA interfaces16 HDD can be used for continuous video recording
- 16 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Hikvision DS-96128NI-I16 128 Channel 3U 4K Super NVR
From large-scale installations to demanding environments, the Hikvision DS-96128NI-I16 128 Channel 3U 4K Super NVR delivers unmatched performance, scalability, and reliability, empowering you to safeguard your assets with confidence and precision. Invest in Hikvision and elevate your surveillance capabilities to new heights.
Features and Functions
Professional and Reliable
- New logical and visualized GUI
- Adopts professional embedded hardware and software, and pioneering dual-OS design to ensure the reliability of system
- Supports redundant power supply to improve the system
- Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage scheme
- Either normal or hot spare working mode is configurable to constitute an N+1 hot spare
Video Input and Transmission
- Up to 128/256 IP cameras can be
- Support live view, storage, and playback of the connected camera at up to 12 megapixels
- 265+ compression effectively reduces the storage space by up to 75%.
- 4 self-adaptive 10M/100M/1000M network
- Adopt stream over TLS encryption technology (enhanced SDK service and RTP over HTTPS protocol)
- Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Bosch, Brickcom, Canon, ONVIF, PANASONIC, Pelco, SAMSUNG, SANYO, SONY, Vivotek and
HD Output
- Simultaneous HDMI 1/VGA output as the main output and the HDMI 2 works as the auxiliary
- HDMI and VGA1 simultaneous outputs by Asynchronous outputs configurable.
- Video outputs at up to 4K (4096×2160)
- Supports decoding up to 20 channels at 1080p resolution.
Storage and Playback
- Up to 16 SATA interfaces and 1 eSATA interface provided for HDD connection
- 10 TB capacity for each HDD.
- HDD health
- Supports HDD quota and group modes; different capacity can be assigned to different
- Normal/Important/Custom video
Various Applications
- Centralized management of IP cameras is supported, including configuration, information import/export, real-time information display, two-way audio, upgrade,
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized.
- VCA detection alarm is
- VCA search for facial detection, people counting, heat map,
- Supports starting record with one
- Realizes instant playback for assigned channel during multi-channel display
- Smart search for the selected area in the video; and smart playback to improve the playback
Specification
| Model | DS-96064NI-I16 | DS-96128NI-I16 | DS-96256NI-I16 | |
| Video & Audio input | IP video input | 64-ch | 128-ch | 256-ch |
| Incoming/outgoing bandwidth | 512 Mbps/512 Mbps | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps | |
| Incoming/outgoing bandwidth (RAID mode) | 512 Mbps/400 Mbps | 576 Mbps/512 Mbps | 768 Mbps/768 Mbps | |
| TLS outgoing bandwidth | 128 Mbps, or 64 Mbps (when RAID is enabled) | |||
| Protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO | |||
| Video & Audio output | HDMI output | Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | ||
| VGA output | 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz | |||
| LCD output (optional) | One 7 inch LCD | |||
| Audio output | 1-ch. RCA (2.0 Vp-p, 1 KΩ) | |||
| Video & Audio decoding | Decoding format | H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only) | ||
| Video resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled. | |||
| Synchronous playback | Up to 16 channels | |||
| Capability | 1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels. | |||
| HDD | Interface | 16 SATA interfaces supporting hot-plug | ||
| Capacity | Up to 10 TB for each HDD | |||
| Storage extension | 1 × eSATA interface, 2 × mini SAS interface (optional) | |||
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 | ||
| Network management | Protocol | IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS | ||
| Network interface | 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface | |||
|
External interface | Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | ||
| Serial port | RS-232; RS-485; Keyboard | |||
| USB interface | Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 | |||
| Alarm input/output | 16/8 | |||
| Extension board (optional) | One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs. Note: The optional extension board should be purchased with your device in advance. | |||
|
General | Power supply | 100 to 240 VAC, 50 to 60Hz, 5 A | ||
| Fan | Redundant dual ball bearing fan; Speed adjustable | |||
| Consumption (without HDD) | ≤ 140W | |||
| Working temperature | 0 °C to + 50 °C (32 °F to 122 °F) | |||
