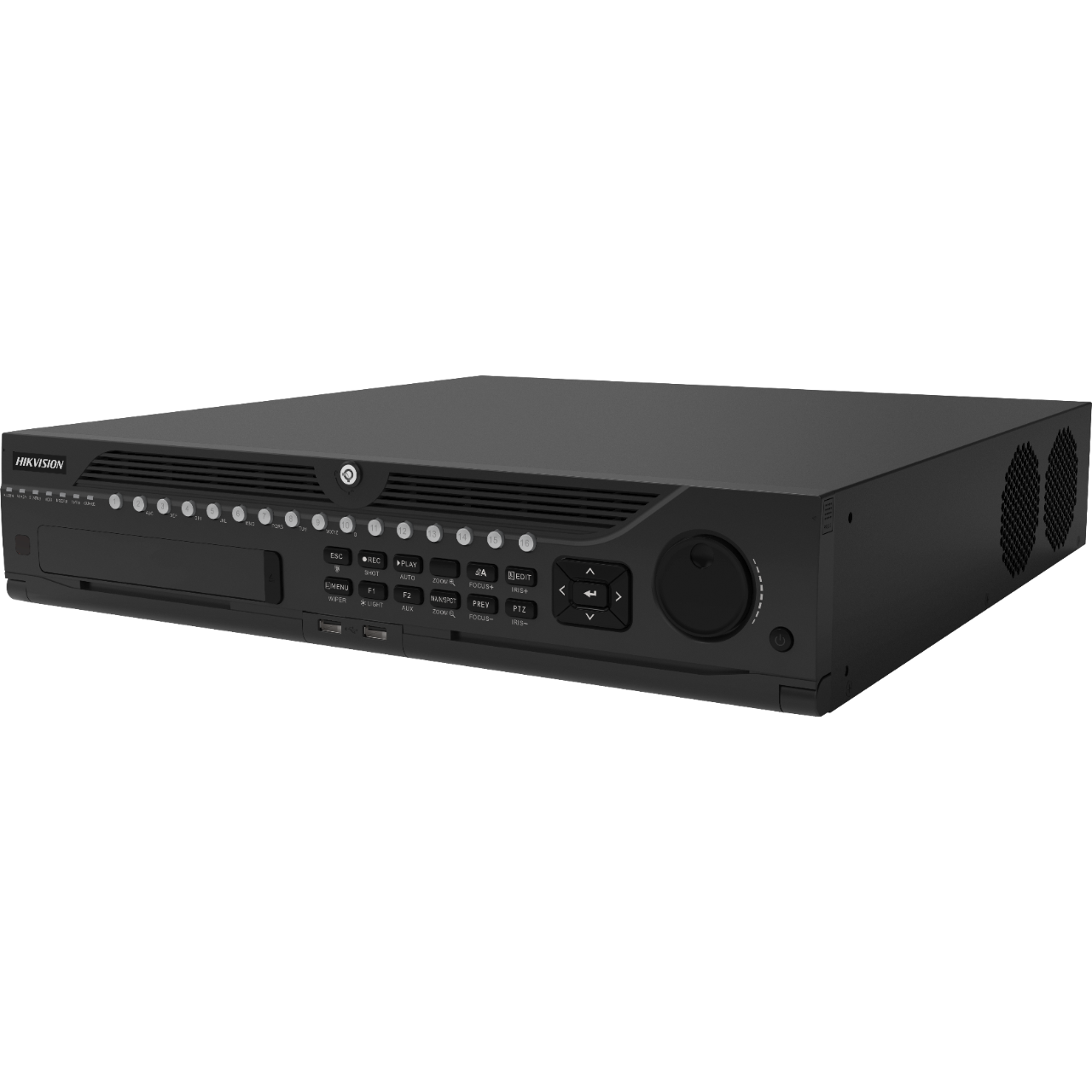

Hikvision DS-9632NI-I8 32 Channel 2U 4K NVR
Original price was: KSh 122,000.00.KSh 120,000.00Current price is: KSh 120,000.00. + VAT
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16/32/64-ch IP camera inputs
- Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding
capacity - 8 SATA interfaces for HDD connection
- HDD hot swapping with RAID 0/1/5/6/10
Hikvision DS-9632NI-I8 32 Channel 2U 4K NVR
Introducing the Hikvision DS-9632NI-I8 32 Channel 2U 4K NVR, a cutting-edge solution designed to revolutionize your video surveillance experience. Packed with advanced features and robust capabilities, this NVR sets the standard for high-performance security systems.
Professional and Reliability
- 265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- Hot-swappable HDD with configurable RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
- 1 eSATA interface for HDD connection
- 16-ch synchronous playback
Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, ), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
Specification
| Model | DS-9616NI-I8 | DS-9632NI-I8 | DS-9664NI-I8 |
| Video and Audio | |||
|
IP video input | 16-ch | 32-ch | 64-ch |
| Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. | |||
| Incoming bandwidth | 256 Mbps | 320 Mbps | 320 Mbps |
| Outgoing bandwidth | 256 Mbps | ||
| Incoming bandwidth (RAID mode) | 200 Mbps | ||
| Outgoing bandwidth (RAID mode) | 200 Mbps | ||
| HDMI 1 output | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| HDMI 2 output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA 1 output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| VGA 2 output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
|
Video output mode | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output | ||
| CVBS output (optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | ||
| Audio output | 2-ch, RCA (Linear, 1 KΩ) | ||
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) | ||
| Decoding | |||
| Decoding format | H.265+/H.265/H.264+/H.264/MPEG4 | ||
|
Recording resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. | ||
| Synchronous playback | 16-ch | ||
| Capability | 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) | ||
| Dual stream recording | Support | ||
| Stream type | Video, Video & Audio | ||
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM | ||
| Network | |||
| Remote connection | 128 | ||
| Network protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | ||
| Network interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface | ||
| Network mode | Net Fault-Tolerance, Multi-address | ||
| RAID | |||
