Sale!
Hikvision DS-K4H258D Two-Door Magnetic Lock
Original price was: KSh 8,600.00.KSh 8,400.00Current price is: KSh 8,400.00. + VAT
- Magnetic lock supports static linear thrust of 280 kg (617 Lbs) × 2
- Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
- Suitable for wooden door, glass door, metal door and fireproof door
- LED indicator displays door lock status
- Abrasion-proof materials
Hikvision DS-K4H258D Two-Door Magnetic Lock

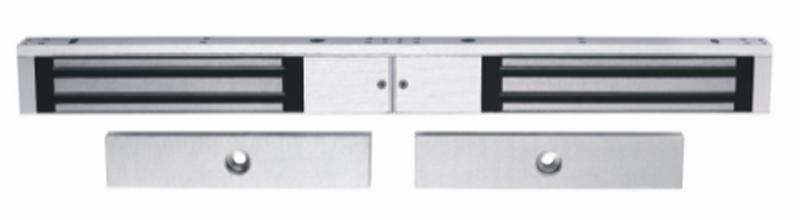

The DS-K4H258D Two-Door magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°. The maximum thrust of the lock is 280 kg (617 Lbs)× 2. It can be used for controlling door opening/closing, and the indicator shows the door status.
Key Features
- Magnetic lock supports static linear thrust of 280 kg (617 Lbs) × 2
- Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
- Suitable for wooden door, glass door, metal door and fireproof door
- LED indicator displays door lock status
- Abrasion-proof materials
Specifications
| Specification | |
| General | |
| Indicator | Green: Working Status |
| Power supply | 12 VDC, 340 mA × 2 |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 0 to 95 % (relative humidity) |
| Dimensions | Lock Body: 500 mm × 45 mm × 25 mm (19.7″ × 1.8″ × 1.0″) Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2″ × 1.5″ × 0.5″) |
| Weight | 4.2 kg (9.3 lb) |
| Material | Shell: hard Anodizing Electroplating Operated Lock Body: eco-friendly Nickel Electroplating Operated Armature Plate: eco-friendly Zinc Electroplating Operated |
| Thrust | 280 kg (617 lb) × 2 linear thrust |
| Door type | Single leaf, double leaf, wooden door, glass door, metal door, fireproof door |
| Magnetic Lock | |
| Unlock method | Current Interruption |
| Surface temperature | ≤ Ambient Temperature 20 °C (68 °F) |
