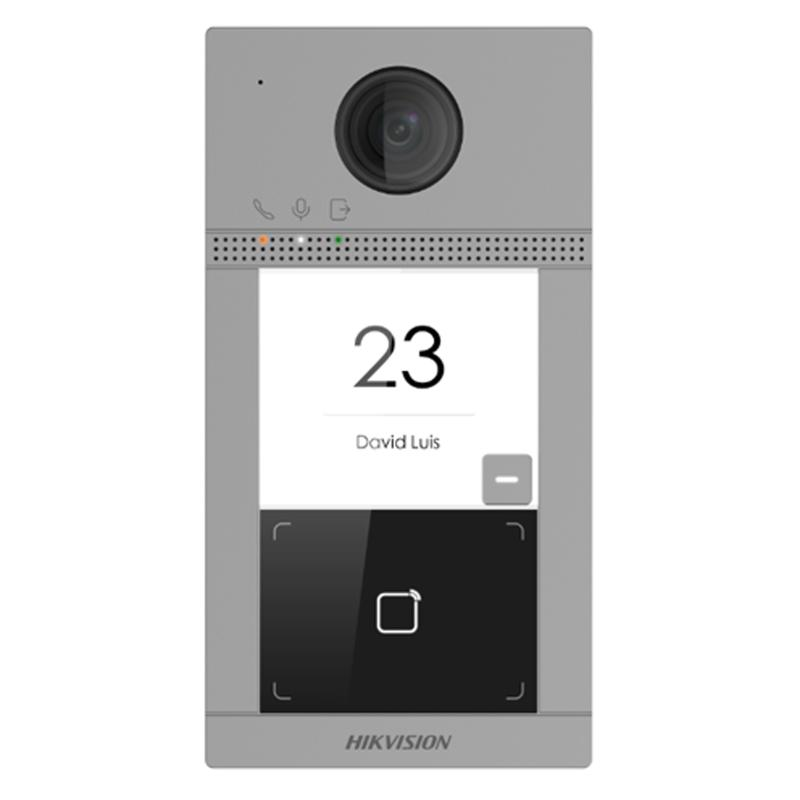

Hikvision DS-KV8113-WME1(B)Video Intercom Villa Door Station
The Hikvision DS-KV8113-WME1(B) Video Intercom Villa Door Station is a high-quality and durable access control device designed specifically for villa or residential applications.
Key Features
- High-Definition Camera: Equipped with a high-resolution camera, the DS-KV8113-WME1(B) captures clear video footage of visitors, ensuring accurate identification and monitoring.
- Two-Way Audio Communication: Built-in microphone and speaker facilitate seamless two-way audio communication between residents and visitors, allowing for convenient interaction without the need to open the door.
- Vandal-Resistant Design: Constructed from durable materials and featuring a vandal-resistant housing, the DS-KV8113-WME1(B) is designed to withstand tampering and physical attacks, ensuring reliable performance in high-risk environments.
- Weatherproof Construction: Designed to withstand various weather conditions, including rain, snow, and extreme temperatures, ensuring continuous operation and security regardless of outdoor conditions.
- Night Vision Capability: Integrated infrared (IR) illumination enables clear visibility in low-light or nighttime conditions, ensuring continuous surveillance and security around the clock.
- Customizable Call Button: The call button can be customized with labels or symbols to indicate different entry points or purposes, providing flexibility and convenience for residents and visitors.
- Remote Access: Residents can remotely communicate with visitors and monitor entry points via mobile devices or indoor stations connected to the same system, providing flexibility and convenience.
- Integration with Access Control Systems: Compatible with access control systems, the DS-KV8113-WME1(B) seamlessly integrates with electronic locks, gates, and other access control devices, enabling comprehensive security solutions.
- Visitor Recording: Optionally records video and audio of visitor interactions for future reference or review, enhancing security and accountability.
Specification
| System parameters | |
| Operation system | Embedded Linux operation system |
| Operation method | Single-button |
| Flash | 32 M |
| RAM | 256 M |
| Video Parameters | |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| BLC | Support |
| DNR | Support |
| WDR | True WDR |
| Field of view | Horizontal: 129° Vertical: 75° |
| Video compression standard | H.264 |
| Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
| Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
| Motion detection | Support |
| Anti-flicker frequency | 50 Hz, 60 Hz |
| Audio parameters | |
| Audio intercom | Two-way audio communication |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression standard | G.711 U |
| Audio compression Rate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Network parameters | |
| Wired network | 10/100 Mbps Ethernet |
| Network protocol | TCP/IP, RTSP |
| Access control parameters | |
| Reading frequency | 13.56 MHz |
| Card type | Mifare card |
| Interfaces | |
| RS-485 | 1 |
| Wi-Fi | 2.4G Wi-Fi |
| Debugging port | 1 |
| TF card | 0 |
| Door contact input | 2 |
| Exit button input | 2 |
| Grounding | 1 |
| Physical button | 1 |
| TAMPER switch | 1 |
| Door control | 2, breakdown voltage: 36 V |
| Performances | |
